Pressurized vs Non-Pressurized Portafilter: The Complete Grind Size Guide (With Infographic)

Quick Answer: Which Grind Size for Each Type?

Choosing between a pressurized vs non-pressurized portafilter? A pressurized portafilter uses a double-wall basket with one small exit hole, so the basket builds the pressure for you. It works with pre-ground espresso coffee and a less exact grind. A non-pressurized portafilter uses a single-wall basket with many holes, so your coffee has to build the pressure. It needs fresh beans ground fine, inside the espresso range of about 180-380 microns, tuned in small steps (Honest Coffee Guide). If a pressurized shot drips slowly and tastes bitter and burnt, grind a little coarser.

Sources: KitchenAid (double-wall baskets suit pre-ground coffee), Tom's Guide, Tom's Coffee Corner.

How to Tell Which Portafilter You Have

Look at the bottom of your basket. One hole means pressurized. Many holes mean non-pressurized. That's the fastest way to know. Hold the basket up to light. If light comes through only one small spot in the middle, it's pressurized (dual-wall). If light comes through hundreds of tiny holes, it's non-pressurized (single-wall).

Portafilter vs Basket: What Is the Difference?

The portafilter is the handle you lock into your machine. The basket is the metal cup that sits inside the portafilter and holds the coffee (Tom's Guide). So "pressurized" and "non-pressurized" really describe the basket, not the handle. A pressurised (British spelling) basket and a pressurized basket are the same thing. You can often swap the basket and keep the same portafilter.

If you still can't tell, check your machine model. Most budget espresso machines ship with pressurized baskets (Tom's Coffee Corner). Two examples we could confirm:

• Pressurized (dual-wall): the De'Longhi Dedica EC685 ships with a single and a double pressurized basket (Complete Home Barista)
• Both types: the Gaggia Classic Pro E24 ships with commercial (non-pressurized) single and double baskets plus a pressurized double basket (Whole Latte Love)
• Not listed? Pop the basket out and count the holes in the bottom. One hole means pressurized.

Budget-machine rule: Most budget espresso machines ship with pressurized baskets. The reason is simple — a double-wall basket forgives pre-ground coffee, a less precise grind and a slightly uneven tamp (KitchenAid). That helps beginners get a good-looking shot.

How Each Portafilter Actually Works

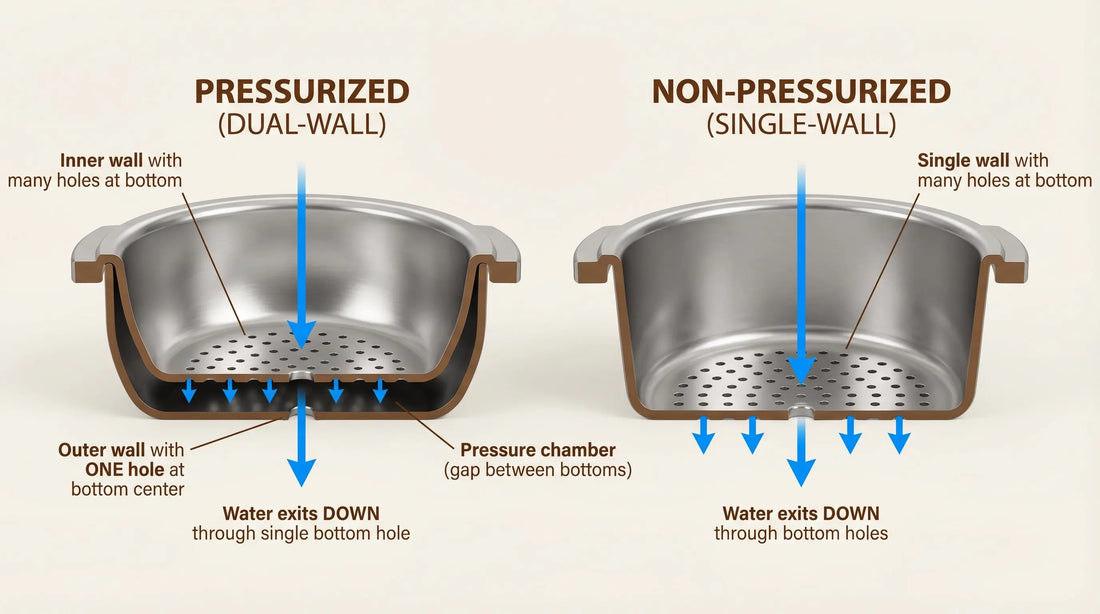

A pressurized portafilter has two walls with a gap between them. The inner wall has many holes. The outer wall has only one tiny hole. This design creates artificial pressure even when your coffee grounds don't. A non-pressurized portafilter has one wall with hundreds of holes. It depends on your coffee to create pressure.

Pressurized basket — the mechanics. Water enters from the top and flows through your coffee puck. It hits the inner wall and drains into the gap between the two walls. The only exit is that single tiny hole. The hole is deliberately small, so water backs up in the gap. That back-pressure forces the water through all of the coffee, so even pre-ground coffee or an uneven tamp can still give a good extraction (KitchenAid). The puck doesn't do most of the work — the small hole does.

Non-pressurized basket — the mechanics. Water flows through your coffee puck and exits through hundreds of tiny holes. There's no backup, no artificial valve. The coffee puck itself must create all the resistance. If you grind correctly and tamp evenly, the puck pushes back hard enough to slow the water to a proper espresso pace. If your grind is wrong or your tamp is uneven, water finds the easy path and sprays through. Your shot is ruined.

Pressure fact: Both basket types sit under the same pump. The Italian espresso standard asks for 9 ± 1 bar of water pressure, a 25 ± 5 second shot and about 25 ml in the cup from 7 grams of coffee (Wikipedia, citing the Istituto Nazionale Espresso Italiano). The difference is what slows the water down. A pressurized basket uses its small hole. A non-pressurized basket uses the coffee puck itself. To see what the bar number on the box really means, read 20 bar vs 9 bar espresso.

Pressurized vs Bottomless Portafilter: What Is the Difference?

A bottomless portafilter (also called a naked portafilter) is a portafilter with no spouts and an open bottom, so you can watch the coffee leave the basket. A pressurized portafilter is about the basket: it has a double wall with one small hole. So the two are not opposites. Bottomless describes the handle, and pressurized describes the basket inside it (Tom's Guide).

Why people buy a bottomless portafilter: It lets you see and judge your extraction (Tom's Coffee Corner). If the coffee comes out unevenly, you can see it right away. Then you can change your grind, dose or tamp.

Which basket goes in it? Most home baristas pair a bottomless portafilter with a non-pressurized basket. Tom's Coffee Corner suggests a single-wall basket plus a bottomless portafilter as a cheap upgrade for budget machines like the De'Longhi Dedica. A pressurized basket can hide much of what a bottomless portafilter is meant to show you, because its small hole controls the flow.

Pressurized basket vs bottomless portafilter — which should you buy? If you use pre-ground coffee, keep the pressurized basket and skip the bottomless portafilter. If you grind fresh beans with a burr grinder, get a non-pressurized basket first. A bottomless portafilter is a useful next step once you want to check and fix your shots.

The Exact Grind Size for Each Type

Grind size is measured in microns (one-thousandth of a millimetre). Espresso grind falls in a narrow range of about 180-380 microns (Honest Coffee Guide). A non-pressurized basket needs you to find the right spot inside that range. A pressurized basket is more forgiving, so a grind toward the coarser end of the range, or pre-ground espresso coffee, still works. The difference feels small but changes everything.

Why the numbers on your grinder don't match: Grinders mark their settings in many ways — numbers, clicks, letters or turns — and they differ from model to model (Honest Coffee Guide). So "setting 10" on one grinder is not "setting 10" on another. Use the micron range, the shot time and the taste as your guide, not a dial number. That is why dialing in espresso takes practice.

What Goes Wrong When You Pick the Wrong Grind

Three things can happen. Too fine, and your shot chokes — water can't push through, so the extraction over-extracts and tastes bitter. Too coarse, and your shot gushes — water pours through in seconds, tasting sour and weak. Just right, and you get a 25-30 second shot with golden crema on top.

Too fine (choked): Water can barely flow. The shot drips slowly over 45+ seconds. The coffee tastes harsh, burnt, and bitter. A shot this slow is a clear sign to change the grind. Fix: grind a few steps coarser.

Just right: Water pushes through smoothly in about 25-30 seconds, the usual espresso time (Wikipedia). A single shot is about 25-30 ml. Golden-brown crema forms on top. The coffee tastes balanced — sweet, slightly bitter, with a clean finish. This is the target.

Too coarse (gushed): Water gushes out in 10-15 seconds. No crema forms. The coffee tastes sour, thin, and watery. You basically made weak drip coffee. Fix: grind a few steps finer.

The fix for bitter espresso: Most of the time, bitter means over-extracted. Grind coarser. Many beginners do the opposite — they grind finer thinking it will make the coffee "stronger." That makes it worse. For more causes, see why your home espresso tastes sour or bitter.

Grind Settings by Machine Type

Here is what two common home espresso machines ship with, and where to start your grind. Grinder numbers differ between models, so start from the basket type, not a dial number. Begin at the fine end for a non-pressurized basket. Begin a little coarser for a pressurized basket. Then adjust one step at a time based on your beans, roast level, and taste.

How to dial in your grind:

1. Start at the recommended setting — use the chart above as your baseline
2. Pull a test shot — time it from when water first hits the coffee
3. Check the time — aim for 25-30 seconds for a single shot of about 25-30 ml
4. Adjust grind size — if under 20 seconds, grind finer. If over 35 seconds, grind coarser
5. Change ONE setting at a time — don't jump multiple settings or you'll overshoot
6. Taste-test at 25-30 seconds — bitter means too fine, sour means too coarse

Dialing in a pressurized portafilter: A pressurized basket hides small grind changes, because its small hole controls the flow. So judge it mostly by taste. If the shot tastes harsh and bitter, grind coarser. If it tastes thin and sour, grind finer or use fresher coffee. Our espresso ratio and dial-in guide shows how to weigh your shot.

De'Longhi non-pressurized portafilter: The De'Longhi Dedica EC685 uses a 51 mm portafilter (Complete Home Barista). To brew non-pressurized, fit a standard single-wall basket. Most baskets will not fit the stock portafilter because of its plastic insert, but that insert can be removed. You can also buy a bottomless portafilter for the new basket (Tom's Coffee Corner).

The Crema Myth (Why Pressurized Crema Is Fake)

Both basket types produce crema — the golden-brown foam on top of espresso. But they make it differently. Tom's Guide calls the foam from a pressurized basket a "fake" crema. Real crema is made of the coffee's own oils, turned into a fine foam, and it forms when high-pressure water dissolves the carbon dioxide trapped in roasted beans (Wikipedia). Learn more in what crema is and why it matters.

Pressurized crema: A pressurized basket makes a foamy shot even with pre-ground or stale coffee (Tom's Guide). The foam can look thick. But thick foam from a pressurized basket does not prove the shot is well made. Judge the taste underneath.

Non-pressurized crema: In a single-wall basket, crema comes from the coffee itself. Water under high pressure takes up the gas trapped in fresh beans, and the coffee oils form a fine foam on top. Good crema looks golden-brown and dense. If your crema is thin, look at your beans and your grind before you blame the machine.

The honest test: Taste beats looks. If you can, brew the same beans in both basket types and compare the flavor, not the foam. A shot that looks great but tastes flat or harsh is not a good shot.

Fresh bean fact: Real crema depends on fresh beans. Tom's Guide notes that pre-ground or stale coffee in a single-wall basket gives "a watery mess", while a pressurized basket can still extract it. This is why cafe-quality espresso at home needs fresh beans, not just good gear.

How to Upgrade from Pressurized to Non-Pressurized

You can upgrade most home machines to non-pressurized extraction by buying a single-wall basket. An aftermarket single-wall basket costs far less than a new machine (Tom's Guide says there are plenty to choose from). You keep using your current machine but replace the dual-wall basket with a single-wall one. This gives you "real" espresso quality without buying a new machine.

Three upgrade options:

1. Replace the basket only — the cheapest step. Removes the dual-wall basket, fits a single-wall basket in your existing portafilter. Works if your portafilter accepts standard basket sizes (51mm or 58mm)
2. Buy a bottomless (naked) portafilter — the next step. Replaces the whole portafilter with a non-pressurized one that has no spouts. Lets you see the extraction directly — useful for diagnosing bad pucks
3. Upgrade your grinder too — non-pressurized baskets are demanding. What matters is small steps at the fine end of the dial, not the total number of settings. Blade grinders won't work

When the upgrade is worth it: You make 2+ shots a day. You use fresh specialty beans. You want cafe-quality espresso. You're willing to learn proper tamping and distribution.

When to skip it: You only make espresso occasionally. You prefer milk drinks (latte, cappuccino) where basket type matters less. You use supermarket pre-ground coffee.

Need a portafilter size reference? See our 51mm vs 58mm portafilter guide to match accessories to your machine.

Which Grinder Matches Each Portafilter?

For pressurized baskets, almost any decent burr grinder works. For non-pressurized baskets, you need precision. The grinder must produce consistent fine grinds in the 180-380 micron range, and move in small steps there. Blade grinders won't cut it. The number of settings alone tells you little. CoffeeGeek calls the Baratza Encore ESP a worthy upgrade over the original Encore "entirely due to how it grinds for espresso". On the ESP, each of the first 20 clicks changes the grind by about 20 microns, its designer told CoffeeGeek.

The InstaCuppa Manual Coffee Grinder for Espresso has a stainless steel burr and 55 grind settings. It costs Rs 2,999 and is in stock (18 October 2026). Our InstaCuppa Electric Conical Burr Coffee Grinder (60 Settings), with a stainless steel conical burr, is sold out right now. The InstaCuppa Automatic Coffee Bean Grinder (Classic Edition) has 25 settings and costs Rs 6,999.

Why burr grinders matter: Blade grinders chop coffee randomly — you get dust and boulders mixed together. Burr grinders crush beans between two metal discs to a consistent size. For espresso, consistency is everything. See our full burr vs blade grinder comparison.
