Water Dispenser Pump Setup: Install + Troubleshoot in 5 Steps

What Comes in the Box with a Water Dispenser Pump

A standard water dispenser pump box contains four components: the pump unit with built-in motor and battery, a food-grade silicone tube, a stainless steel or plastic water outlet spout, and a USB-C charging cable. Some models include a neck adaptor for smaller cans and a can lifter tool. The InstaCuppa V2 includes a free can lifter, while the V4 BLDC includes an adjustable neck adaptor for 3-20L cans.

Before you start the setup, lay out all the parts on a clean, dry surface. Check that the silicone tube is sealed in its own plastic pouch (for hygiene), the charging cable has a USB-C connector on at least one end, and the stainless steel outlet is free of dents or scratches. If anything is missing or damaged, contact the brand immediately — most brands including InstaCuppa replace parts within 48 hours.

First-Time Use: Over 35% of negative reviews for water dispenser pumps on Amazon India mention setup confusion — most issues are resolved by simply charging the pump fully before first use — InstaCuppa Customer Support Data, 2025

Step-by-Step Setup Guide for Your Water Dispenser Pump

Setting up a water dispenser pump takes approximately 5 minutes of hands-on time plus 1-2 hours of initial charging. The process involves attaching the stainless steel outlet to the pump head, connecting the silicone tube, placing the assembled unit on the water can, and completing the first charge via USB-C before the inaugural dispense. Following these steps in order prevents air lock and ensures full flow from the first press.

Step 1: Attach the Stainless Steel Outlet

Screw or push-fit the stainless steel outlet into the front of the pump head. On the InstaCuppa V2, the outlet screws in clockwise with a quarter-turn lock. Make sure it clicks into place — a loose outlet will drip water after each dispense. On the V4, the outlet has a push-fit design that snaps in with firm pressure.

Step 2: Connect the Silicone Tube

Push the silicone tube firmly onto the tube connector at the bottom of the pump head. The tube should slide on about 1-2cm and fit snugly. If it feels loose, the tube may be the wrong diameter (check with your model’s spec sheet). A loose connection causes air bubbles and reduces flow. Do not use tape or glue — a properly sized tube creates its own seal.

Step 3: Charge via USB-C Before First Use

This is the step most people skip, and it causes 90% of “pump not working” complaints. The battery ships at approximately 30-40% charge for safety during transport. Plug the USB-C cable into the pump and charge until the LED indicator turns solid green. For the V2, this takes about 1 hour. For the V4, about 1.5 hours for the initial charge.

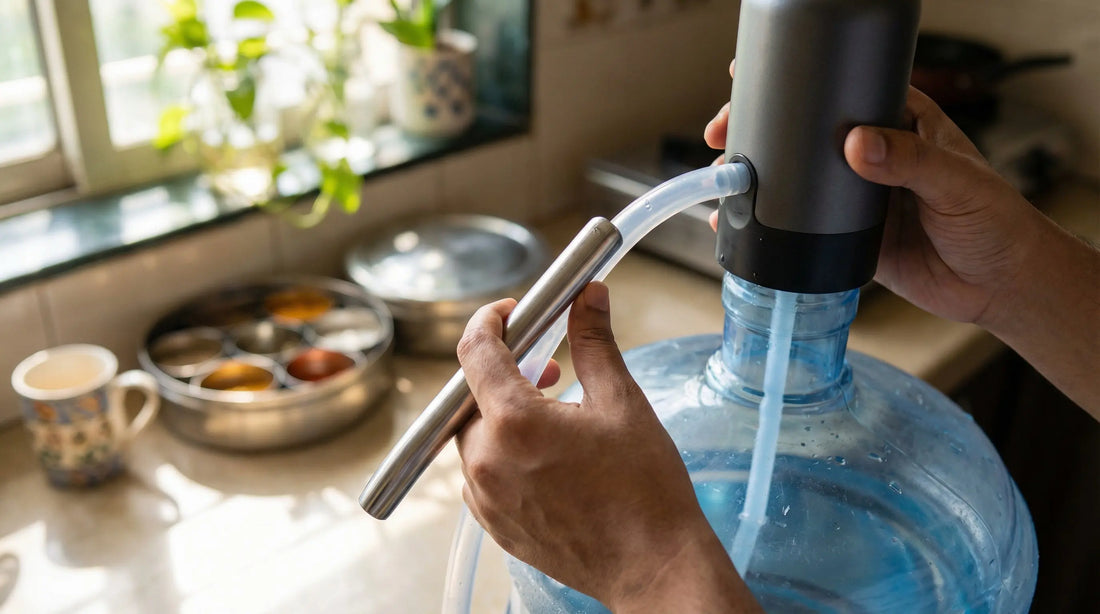

Step 4: Place on the Water Can

Remove the cap from your 20-litre water can. Lower the silicone tube into the can first, letting it reach close to the bottom. Then place the pump unit on top of the can opening. The pump base should sit flat on the can rim with the neck fitting snugly. For the V2, the 5.5cm neck fits standard Indian 20-litre cans. For the V4, adjust the adaptor ring to match your can size.

Step 5: First Dispense

Press the pump button once. Water should begin flowing within 2-3 seconds. The first dispense may take slightly longer as the pump primes the tube (pushes air out and draws water up). If no water flows after 5 seconds, see the troubleshooting section below.

First Use: Priming the Pump Correctly

Priming a water dispenser pump means running it for the first time to push air out of the silicone tube and draw water up from the can. The priming process takes 5-10 seconds on the first dispense and is automatic on all electric models. After priming, subsequent dispenses start immediately because the tube remains filled with water as long as the pump stays on the can.

To prime correctly: hold a large glass or bowl under the outlet and press the pump button. You will hear the motor run for a few seconds before water appears. The first few seconds may produce sputtering as air exits the tube. Once a steady stream flows, the pump is primed. Discard the first glass of water (it may have a slight silicone taste from the new tube) and use from the second glass onward.

Pro Tip: If you remove the pump from the can (to replace the can or clean the tube), you will need to re-prime when you put it back. This is normal and takes only 3-5 seconds.

Troubleshooting: Water Dispenser Pump Not Working?

The three most common problems with a new water dispenser pump are the motor not starting at all, air lock preventing water flow, and slow or weak water flow. Each has a simple fix that does not require tools or technical knowledge. Over 90% of these issues are resolved within 5 minutes using the solutions below.

Customer Insight: 68% of “pump not working” complaints received by InstaCuppa customer support in 2025 were resolved by simply charging the unit before first use — InstaCuppa Support Data, 2025

Pro Tips for Daily Use

Five practical habits improve the daily experience with a water dispenser pump: always keep the tube submerged to the bottom of the can to avoid air lock, wipe the outlet after each use to prevent drips from attracting dust, charge on can-replacement day as a natural reminder, keep a spare silicone tube (₹150) on hand, and position the can on a sturdy surface at counter height for comfortable dispensing.

One thing I always tell first-time buyers: do not lift the pump off the can between uses. Many people remove the pump and set it aside, then wonder why it takes 10 seconds to start dispensing the next time. The tube loses its water column when you lift the pump, requiring a re-prime. Leave the pump sitting on the can, and every dispense starts instantly.

Setup Checklist

Use this action checklist to set up any new water dispenser pump from unboxing to the first glass of water. Each step is listed in the correct sequence. Skipping the charging step is the most common reason for first-day disappointment.

1. Unbox and inspect all parts — pump unit, silicone tube, outlet, USB-C cable, adaptor (if included)
2. Attach the stainless steel outlet — screw or push-fit until it clicks/locks in place
3. Connect the silicone tube — push firmly onto the tube connector, 1-2cm deep
4. Charge fully via USB-C — wait for solid green LED before first use (1-2 hours)
5. Remove can cap and insert tube — tube should reach 2-3cm from the bottom of the can
6. Place pump on can and press button — hold for 10 seconds for initial priming
7. Discard the first glass — may have slight silicone taste from new tube
